CFTREE

The <cftree> tag lets you display hierarchical information.

So here we are going to use hierarchical data which is then processed with a recursive alogorithm to retun a tree built from simple HTML <ul> and <li> tags.

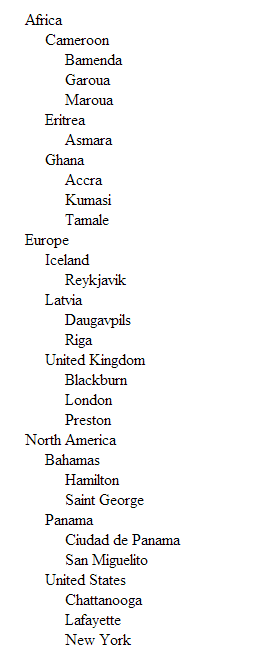

This is the output :-

CFINPUT Example

In the index.cfm file we load the tree data by calling the getSourceData and then the getTree method contained in the content.cfc file. Then we load the CSS and then the HTML as follows:-

Listing 1 : index.cfm

<!--- CREATE THE CFC OBJECT --->
<cfset objContent = createObject("component", "content") />
<!--- GET THE INITIAL DATA SOURCE --->
<cfset getSourceData = objContent.getSourceData()>
<!--- GET THE TREE --->
<cfset getTree = objContent.generateTree(ParentID=0,level=0,prev_thing=0,qryTree=getSourceData)>
<!DOCTYPE html>
<html lang="en">
<head>
    <meta charset="utf-8">
    <title>CFTREE Alternative</title>
    <link rel="stylesheet" href="css/custom.css">
    <script src="//code.jquery.com/jquery-1.9.1.js"></script>
    <script src="js/main.js"></script>
</head>
<body>
    <div id="geo-tree">
        <cfoutput>#getTree#</cfoutput>
    </div>
</body>
<footer>
</footer>
</html>

Just a sprinkling of CSS :-

Listing 2 : custom.css

ul li {
    margin-left: -20px;
    list-style-type: none;
    cursor: pointer; cursor: hand;
}
.tree-hide {
    display: none;
}
.tree-show {
    display: block;
}

The generateTree method is the recursive function and does all the heavey lifting. Follow the comments in generateTree method to understand how it all fits together.

Listing 3 : content.cfc

<cfcomponent>
    <cfset tblPlaces = queryNew("id,name,parent_id,display_order", "integer,varchar,integer,integer", [
        {id:1,name:"Africa",              parent_id:0,    display_order:1},
        {id:2,  name:"Europe",            parent_id:0,    display_order:2},
        {id:3,  name:"North America",     parent_id:0,    display_order:3},
        {id:4,  name:"Cameroon",          parent_id:1,    display_order:1},
        {id:5,  name:"Eritrea",           parent_id:1,    display_order:2},
        {id:6,  name:"Ghana",             parent_id:1,    display_order:3},
        {id:7,  name:"United Kingdom",    parent_id:2,    display_order:3},
        {id:8,  name:"Iceland",           parent_id:2,    display_order:1},
        {id:9,  name:"Latvia",            parent_id:2,    display_order:2},
        {id:10, name:"Bahamas",           parent_id:3,    display_order:1},
        {id:11, name:"Panama",            parent_id:3,    display_order:2},
        {id:12, name:"United States",     parent_id:3,    display_order:3},
        {id:13, name:"Hamilton",          parent_id:10,   display_order:1},
        {id:14, name:"Saint George",      parent_id:10,   display_order:2},
        {id:15, name:"Bamenda",           parent_id:4,    display_order:1},
        {id:16, name:"Garoua",            parent_id:4,    display_order:2},
        {id:17, name:"Maroua",            parent_id:4,    display_order:3},
        {id:18, name:"Asmara",            parent_id:5,    display_order:1},
        {id:19, name:"Blackburn",         parent_id:7,    display_order:1},
        {id:20, name:"London",            parent_id:7,    display_order:2},
        {id:21, name:"Preston",           parent_id:7,    display_order:3},
        {id:22, name:"Accra",             parent_id:6,    display_order:1},
        {id:23, name:"Kumasi",            parent_id:6,    display_order:2},
        {id:24, name:"Tamale",            parent_id:6,    display_order:3},
        {id:25, name:"Reykjavik",         parent_id:8,    display_order:1},
        {id:26, name:"Daugavpils",        parent_id:9,    display_order:1},
        {id:27, name:"Riga",              parent_id:9,    display_order:2},
        {id:28, name:"Ciudad de Panama",  parent_id:11,   display_order:1},
        {id:29, name:"San Miguelito",     parent_id:11,   display_order:2},
        {id:30, name:"Chattanooga",       parent_id:12,   display_order:1},
        {id:31, name:"Lafayette",         parent_id:12,   display_order:2},
        {id:32, name:"New York",          parent_id:12,   display_order:3}
    ])>
    <!--- GET THE SOURCE DATA --->
    <cffunction name="getSourceData" access="public" returntype="query">
        <cfquery name="qrySourceData" dbtype="query">
            select *
            from tblPlaces
        </cfquery>
        <cfreturn qrySourceData />
    </cffunction>
    <!--- INITIALISE PUBLIC VARIABLES --->
    <cfset VARIABLES.outputString = "">
    <cfset VARIABLES.tree = "">
    <cfset VARIABLES.prev_parent = "">
    <cffunction name="generateTree" access="public" returntype="string">
        <cfargument name="parent_id" type="numeric" required="yes" default=0 />
        <cfargument name="level" type="numeric" required="yes" default=0 />
        <cfargument name="prev_parent" type="numeric" required="yes" default=0 />
        <cfargument name="qryTree" type="query" required="yes" />
        <!--- THIS VARIABLE CHECKS IF WE HAVE CHILDREN IN THS ITERATION --->
        <cfset var checkForChildren = "">
        <!--- THIS VARIABLES HOLDS THE LOCAL SUB-QUERIES PARTICULAR TO THIS ITERATION --->
        <cfset var objTree = "">
       <!--- IF THIS IS OUR INITIAL CALL (FIRST TIME THROUGH) THEN WE NEED TO GET THE SOURCE DATA --->
        <cfif arguments.level eq 0>
            <cfset VARIABLES.tree = qryTree>
            <cfset VARIABLES.outputString = "">
        </cfif>
        <!--- GET ALL THE RECORDS THAT ARE CHILDREN OF THE CURRENT PARENT --->
        <cfquery name="objTree" dbtype="query">
            select *
            from VARIABLES.tree
            where parent_id = <cfqueryparam value="#arguments.parent_id#" cfsqltype="cf_sql_integer">
            order by display_order
        </cfquery>
        <!--- SET THE DEFAULT  strULClass.  --->
        <!--- WE USE THIS TO INITIALLY SET THE TOP LEVEL ITEM(S) AS VISIBLE AND EVERYTHING ELSE AS HIDDEN  --->
        <cfif arguments.level EQ 0>
            <cfset strULClass='tree'>
        <cfelse>
            <cfset strULClass='tree tree-hide'>
        </cfif>
        <!--- START THE NEW CHILDREN LIST <UL> --->
        <cfset VARIABLES.outputString = VARIABLES.outputString & '<ul class="#strULClass#" id="ul-#arguments.parent_id#">'>
        <!--- LOOP OVER THE CHILDREN OF THIS PARENT --->
        <cfloop query="objTree">
                <!--- GET THE DATA BASED ON THE CURRENT ITERATION --->
                <cfquery name="checkForChildren" dbtype="query">
                    select * from VARIABLES.tree where parent_id = <cfqueryparam value="#objTree.id#" cfsqltype="cf_sql_integer">
                </cfquery>
                <!--- DOES THIS ELEMENT HAVE CHILDREN OR IS IT THE FINAL NODE --->
                <cfif checkForChildren.recordcount gt 0>
                    <!--- WE HAVE SOME CHILDREN NODES SO WE WILL HAVE TO ITERATE AGAIN ( I.E CALL THIS FUNCTION AGAIN ) --->
                    <cfset VARIABLES.prev_parent = objTree.id>
                    <cfset VARIABLES.outputString = VARIABLES.outputString & '<li '>
                    <cfset VARIABLES.outputString = VARIABLES.outputString & 'class="tree parent-#arguments.prev_parent#" '>
                    <cfset VARIABLES.outputString = VARIABLES.outputString & 'id="#objTree.id#" '>
                    <cfset VARIABLES.outputString = VARIABLES.outputString & 'data-level="#arguments.level#">'>
                    <cfset VARIABLES.outputString = VARIABLES.outputString & objTree.name>
                    <cfset generateTree(parent_id = objTree.id, level = arguments.level + 1, prev_parent = VARIABLES.prev_parent, qryTree = qryTree)>
                <cfelse>
                    <!--- NO CHILDREN FOR THIS CHILD. --->
                    <!--- SO WE DO NOT HAVE TO ITERATE AGAIN ( I.E CALL THIS FUNCTION AGAIN ) --->
                    <!--- WE JUST ADD IT TO THE OUTPUT STRING --->
                    <cfset VARIABLES.outputString = VARIABLES.outputString & '<li '>
                    <cfset VARIABLES.outputString = VARIABLES.outputString & 'class="tree parent-#VARIABLES.prev_parent#" '>
                    <cfset VARIABLES.outputString = VARIABLES.outputString & 'id="#objTree.id#" '>
                    <cfset VARIABLES.outputString = VARIABLES.outputString & 'data-level="#arguments.level#">'>
                    <cfset VARIABLES.outputString = VARIABLES.outputString & objTree.name>
                </cfif>
                <!--- CLOSE LIST ITEM --->
                <cfset VARIABLES.outputString = VARIABLES.outputString & '</li>'>
        </cfloop>
        <!--- CLOSE UL --->
        <cfset VARIABLES.outputString = VARIABLES.outputString & '</ul>'>
        <!--- RETURN OUTPUT STRING --->
        <cfif arguments.level eq 0>
            <cfreturn VARIABLES.outputString>
        </cfif>
    </cffunction>
</cfcomponent>

And finally when an <li> is clicked, if there is a <ul> underneath it then we show/hide that <ul>.

Listing 4 : main.js

$(document).ready(function(){
    $( ".tree" ).on( "click", "li", function(e) {
        var clicked = $("#ul-" + $(this).prop("id"));
        if(clicked.hasClass("tree-hide")) {
            clicked.removeClass("tree-hide");
            clicked.addClass("tree-show");
        }
        else {
            clicked.addClass("tree-hide");
            clicked.removeClass("tree-show");
        }
        e.stopPropagation();
    });
});
